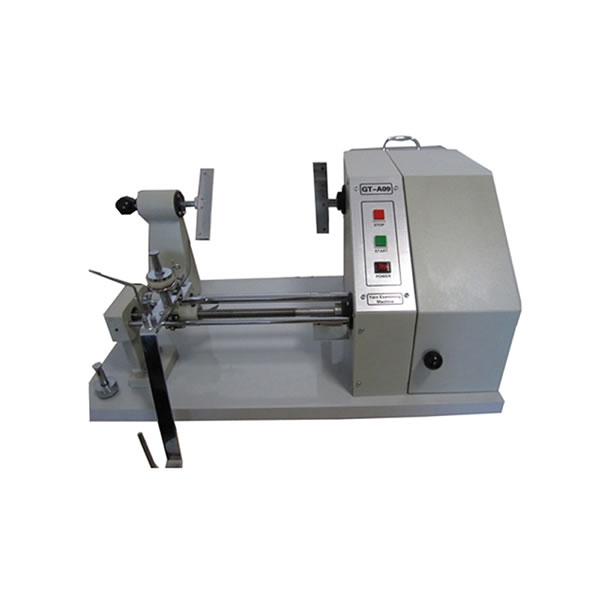

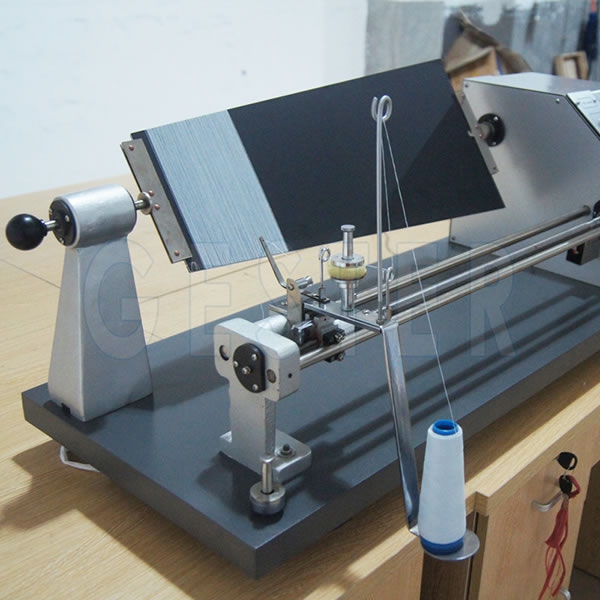

Our yarn evenness testing machine contains two models which are GT-A09 and GT-A09B, and they are applied to assess the evenness, regularity, hairiness, neps and other imperfections in a representative sample of yarn/cotton/man-made fiber wound at a pre-determined pitch onto a tapered black board.
Features of the Yarn Evenness Testing Machine
1. This yarn testing equipment is driven by a synchronous motor and a digital controlling circuit, thus ensuring uniform pitch during a test.
2. Fitted with an alternative pre-tension device, our yarn appearance board winder realizes auto-stop, and the winding speed is adjustable.
3. Our yarn evenness testing machine offers various pitches to satisfy comprehensive requirements of different yarn linear density.
Technical Data
| Model | |
| Rotational speed | 10-400rpm (adjustable) |
| Black board size | 250×220×2mm |
| Yarn winding density | 7, 9, 11, 13, 15, 19 wraps/cm |
| Dimensions (L×W×H ) | 620×370×340mm |
| Weight | 30kg |
| Standards | ASTM D2255, GB/T 9996 |

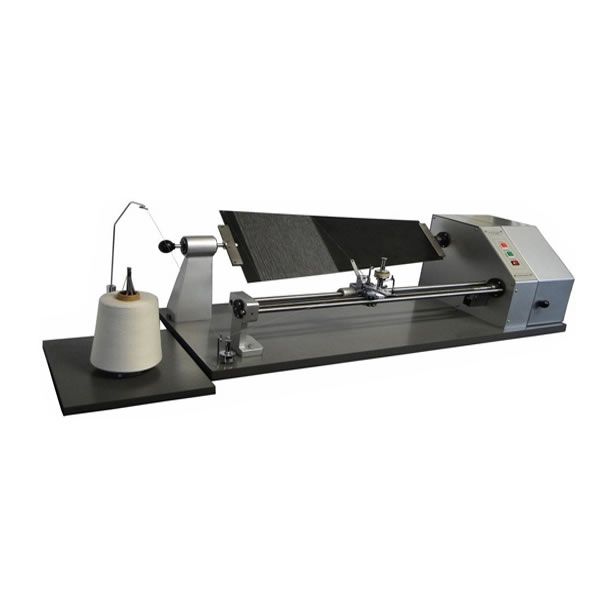

Technical Data
| Model | |
| Black board size | 575×250×160×3mm |
| Tensile method | Pressing by grade |
| Reeling density | 7, 9, 11, 13, 15, 19 pieces/cm or 20 pieces/4.5cm |
| Yarn frame speed | 0-350r/min (stepless) |
| Dimensions (L×W×H) | 1065×450×270mm |
| Weight | 26.5kg |
| Standards | ASTM D2255 |
